Circuit Panels

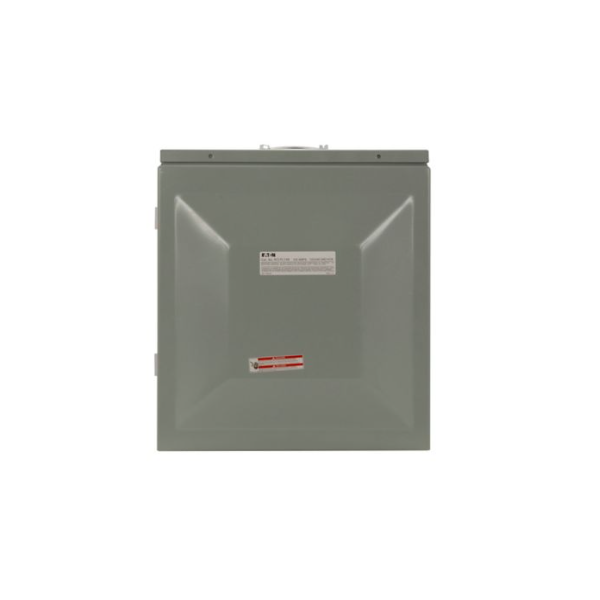

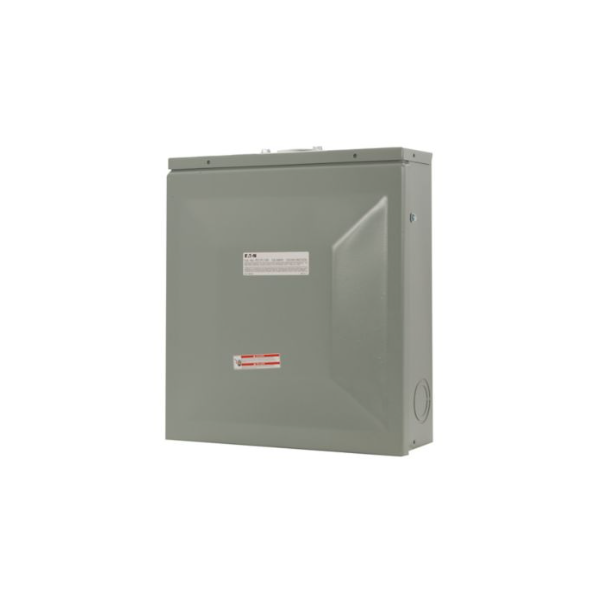

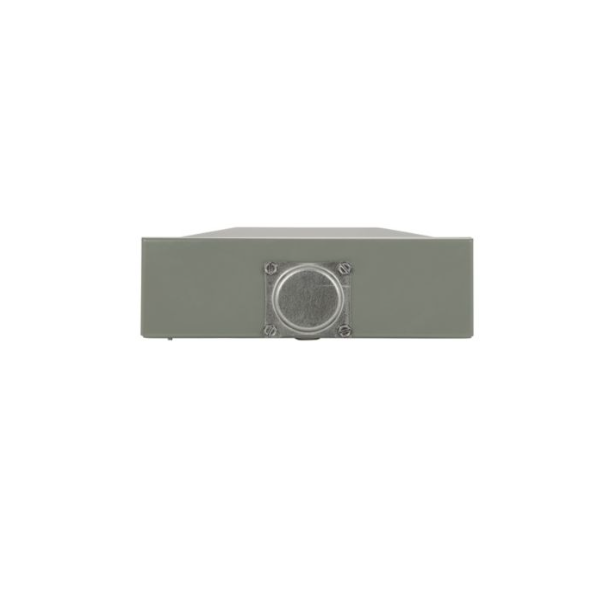

EATON 100A Sub-Panels

Category:
Residential, Circuit Panels
SKU:
RCCPL102
{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

Eaton BR main lug loadcenters canadian,Non-combination, main lug only,100A,Outdoor,NEMA 3R,Single-phase,120/240 V,#14-2 AWG:



  • GENERAL SPECIFICATIONS
  • PRODUCT NAME: Eaton BR main lug loadcenter
  • CATALOG NUMBER: RCCPL102
  • UPC: 622588100776
  • PRODUCT LENGTH/DEPTH: 6.5 in
  • PRODUCT HEIGHT: 11.5 in
  • PRODUCT WIDTH: 4 in
  • PRODUCT WEIGHT: 5 lb
  • CERTIFICATIONS: CSA C22.2.CSA Std. C22.2 No. 29

  • NUMBER OF SPACES: 24

  •  INTERRUPT RATING: NEMA 3R
  • TYPE: Non-combination, main lug only
  • COVER: Outdoor
  • PHASE: Single-phase
  • BUS MATERIAL: Copper
  • ENCLOSURE: NEMA 3R
  • NUMBER OF CIRCUITS: 24
  • VOLTAGE RATING: 120/240 V
  • AMPERAGE RATING: 100 A
