GFCI

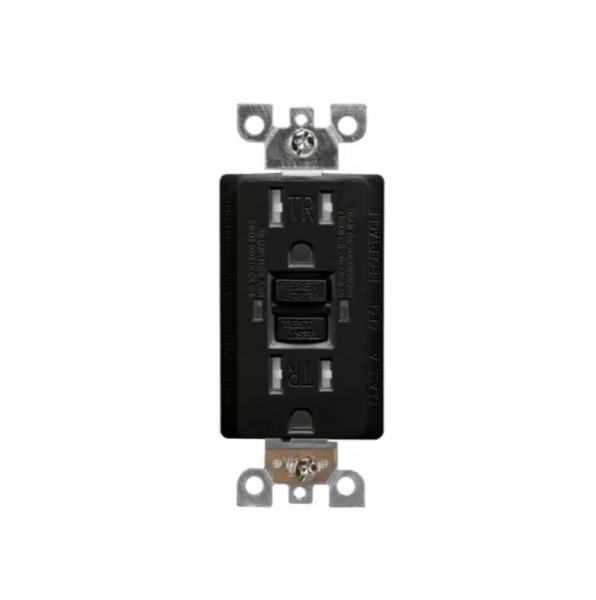

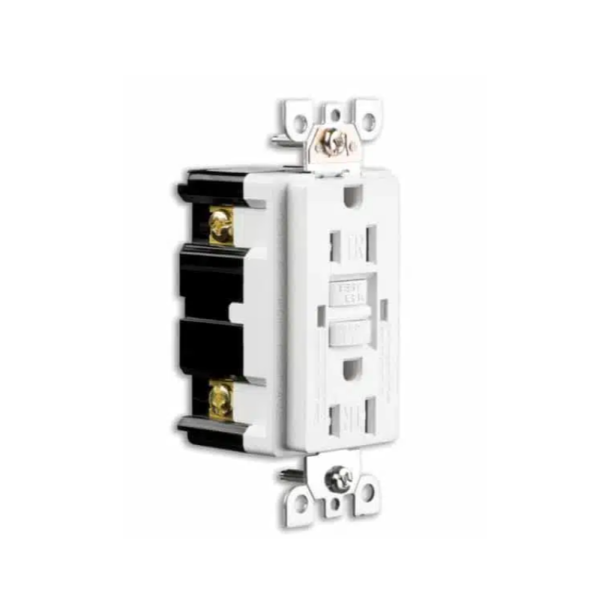

GFCI(TR) With LED Light

• Model No.: YGB-094
• YGB-095
• Good heat dissipation
• Blade design of copper alloy contacts, good conductivity
• Super high impact resistance and thermal stability
• Cover pans are made of high quality polycarbonate
• Chemical corrosion resistance
• Fingerprint-resistant zinc plated mounting brackets
• Grounding
• One-piece grounding design
• Security
• Security doors designed to prevent people accidental exposure
• Mechanical life
• Unloaded plug≥5000Sec Loop detection
• With automatic monitouring function
• UL498 UL943 CSA-C22.2 No.42
• Housing material flame retardant grades UL94-V2
• Rated working current: 15A/20A
• Rated working voltage: 125V
• Power Frequency: 60HZ
• Tripping Threshold: 5mA Tripping time<25m
• Surge current: 6000V/3000A 6000V/10KA
• Electric strength: Pressure resistance 1500V 50Hz Duration 1 Min
• Working Temperature: -35°C~66°C
• Insulation resistance: >50MΩ (DC500V)
• Short-circuit current: 10KA
